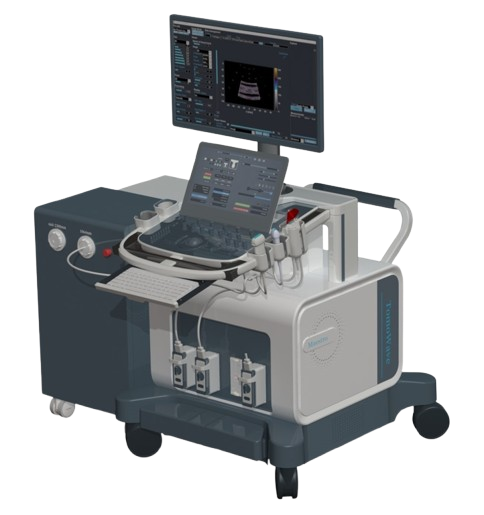

MAESTRO-MD

Universal Premium High-End System dual-modality combining ultrasound and optoacoustics

Tomowave's Maestro-MD is an advanced medical imaging system that combines optical and acoustic technologies to provide high-resolution, real-time visualization of tissue structure and function. Designed for clinical and research applications, it enables early detection and monitoring of various diseases with unmatched precision and depth.

View Our Specifications

Precision Imaging

Revolutionizing Healthcare

TomoWave develops proprietary optoacoustic tomography and laser ultrasound systems for combined functional/molecular and anatomical imaging with applications in detection of cancer and image-guided interventions

Discover Our Products
LOIS-3D
Maestro
Symphony

MAESTRO-MD

Universal Premium High-End System dual-modality combining ultrasound and optoacoustics

  1. Premium high-end ultrasound system with all modes of operation including plane-wave ultrafast ultrasound with the power of optoacoustics at minimum additional cost.
  2. Detection and diagnostics of various cancers and lymph nodes.
  3. Image guided surgery: cancer, spine, vasculature, cosmetic, etc.
  4. Monitoring volumetric temperature in the course of minimally invasive thermal therapy of cancer.
  5. Assessment of blood oxygenation in various organs.
  6. Differentiation of arteries, veins and nerves.
  7. Molecular diagnostics of diseases in early stages: diabetic damage of microvasculature, liver disease, Chron disease, monitoring kinetics of contrast agents.

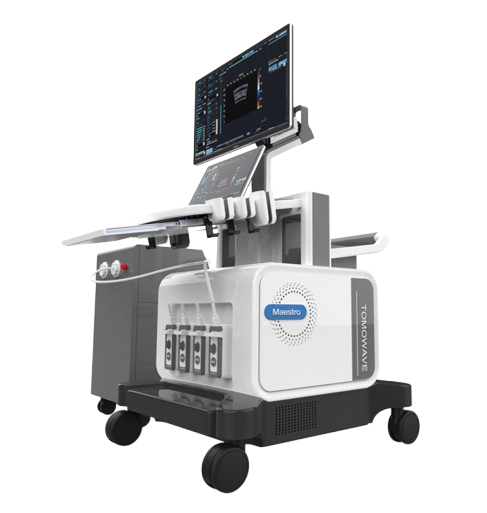

MAESTRO-HR

Universal Premium High-End System for preclinical research in animals and humans

  1. Spatial resolution: from 0.3mm for deep tissue (up to 50 mm) imaging to 0.05mm for subsurface (up to 8 mm) imaging
  2. Temporal resolution from 20 fps (OAT) to 300 fps (plane wave USI)
  3. Contrast/Sensitivity to optical absorption: dma~0.03/cm.
  4. Spectral imaging from 660 nm to 2300 nm for detection of arteries, veins and nerves and molecular imaging of contrast agents.
  5. Monitoring temperature distribution with video rate and precision of better than 0.50C.
  6. High-end ultrasound functions of A,B,C,M modes, color and power Doppler, shear wave elastography, and dynamic microvasculature, plane wave cardiac imaging, vector blood flow imaging of ultrasound contrast agents.
  7. Functional imaging of [SO2] by optoacoustic tomography.

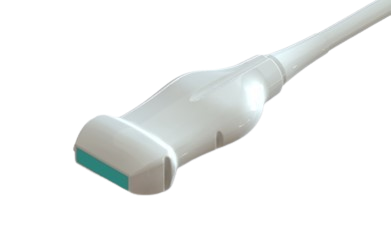

Maestro-HR Ultrasonic and Optoacoustic Probes

High Frequency Probes

MODEL TYPE FREQUENCY APPLICATIONS
TWHF-65
LINEAR
65-35 MHz
Embryos, microvasculature, rat skin, zebrafish, mouse and rat eye anatomy
TWHF-42
LINEAR
42-18 MHz
Mouse, rat cardiovascular abdomen, reproductive system, rabbit eyes
TWHF-22
LINEAR
22-14 MHz
Rat, Rabbit cardiovascular, abdominal

Deep Tissue Imaging Probes

MODEL TYPE FREQUENCY APPLICATIONS
TWDT-14-F
LINEAR
14-6 MHz
Rat, Rabbit cardiovascular, abdominal, mouse brain
TWDT-11-F
LINEAR
11-4 MHz
Large animal abdomen, rat and rabbit cardiovascular
TWDT-04-F
PHASED
4-0.1 MHz
Large animal cardiovascular, abdominal, large vasculature

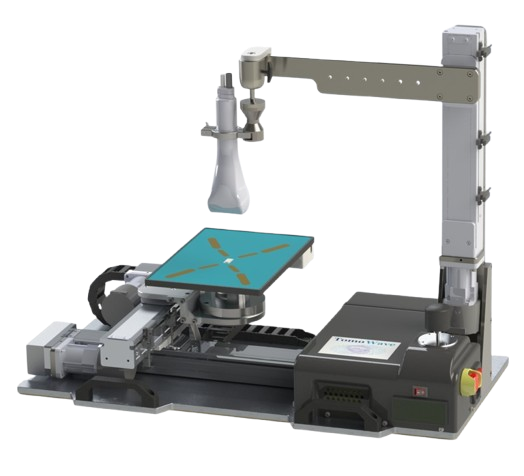

Computer-Controlled
Probe Holder for Maestro

  1. Animal platform with physiological monitoring under adjustable platform temperature: Simultaneously controls EKG, body temperature, and respiratory rhythm of experimental animals in real time.

  2. 3D position adjustment,
    High-strength alloy frame,
    Platforms for mouse and rat

Frequently Asked
Questions

The MAESTRO-MD device by Tomowave represents a cutting-edge advancement in biomedical imaging, integrating multi-modal technology to provide comprehensive diagnostic insights. Designed for clinical and research applications, MAESTRO-MD combines optoacoustic (photoacoustic) and ultrasound imaging in a single, non-invasive system, enabling high-resolution visualization of tissue structure and function in real time.

What is the MAESTRO device, and what makes it unique?

MAESTRO is a multi-modal imaging system developed by Tomowave that combines optoacoustic (photoacoustic) and ultrasound imaging technologies. Its unique integration allows for simultaneous visualization of both anatomical structures and functional information—such as blood oxygenation and molecular content—in real time, providing a comprehensive view of biological tissues.

What are the main clinical or research applications of the MAESTRO device?

The MAESTRO system is designed for a wide range of applications, including cancer detection and monitoring, assessment of vascular health, imaging of inflammatory conditions, and evaluation of tissue response to therapies. Its non-invasive nature and functional imaging capabilities make it valuable for both clinical diagnostics and biomedical research.

How does MAESTRO improve diagnostic accuracy compared to traditional imaging methods?

By combining ultrasound with optoacoustic imaging, MAESTRO provides both structural and molecular-level information in a single scan. This dual-modality approach enables more accurate detection of abnormalities, earlier diagnosis, and better monitoring of treatment outcomes—surpassing the limitations of imaging systems that rely solely on anatomical data.

Is the MAESTRO device safe for patients and research subjects?

Yes, MAESTRO is designed with safety in mind. It uses safe levels of near-infrared laser light and non-ionizing ultrasound energy, making it non-invasive and free from the risks associated with ionizing radiation. This makes it suitable for repeated imaging sessions and long-term monitoring.

Request a Free Demo

See how Tomowave can elevatre your imaging.
